This technical guide to the 2005–2007 C6 Corvette identifies critical LS7/LS2 specs and flaws, including block casting 12598723 and head casting 12578449. Learn to verify the 2005 3-bolt differential flaw, decode Flint “F” stamps, and perform the LS7 valve guide “Wiggle Test.” Updated for 2026 with current harmonic balancer repair costs and TR6060 (MH3) transmission data.

Believe me, when the C6 generation burst onto the scene in 2005, we all knew the rules had irrevocably changed.

This wasn’t a minor refresh; it was a bold declaration that Corvette was done playing catch-up, evidenced by the pop-up headlights finally being retired after 43 years.

This new, focused design debuted with the phenomenal 6.0-liter LS2 V8, which became an instant factory hero by pounding out a genuine 400 horsepower and 400 lb-ft of torque.

While the 2005 launch had a few quirks—like the clunky 4-speed automatic—2006 quickly fixed that flaw by introducing the essential six-speed paddle-shift automatic and unleashing the Z06, an undisputed, 505HP fixed-roof supercar assassin.

The platform found its ultimate refinement in 2007, giving us coveted collector pieces like the Ron Fellows Z06 and the Indy 500 Pace Car. This entire 2005-2007 run stands as the definitive launch era, blending high-speed savagery with daily usability like nothing before it.

Also, for those who want to know more about the sixth generation of America’s Sports Car, we have put together: C6 Corvette Deep Dive: The Return to Simplicity.

Comparative Performance Value: Z06 vs. Global Rivals

2005 C6 Corvette: The Clean-Sheet Revolution

The 2005 Corvette wasn’t just a new model year; it was a total declaration of war against the European sports car establishment.

This C6 generation finally ditched the old C5’s polarizing pop-up headlights—a move not seen since 1962 – and rolled out a tighter, more refined body.

Beneath the hood sat the all-new 6.0-liter LS2 V8, which cranked out a potent and factory-guaranteed 400 horsepower and 400 lb-ft of torque right out of the box.

This power bump, coupled with a body that was five inches shorter but rode on a longer 105.7-inch wheelbase, transformed the car’s handling and overall sophistication.

This truly was a clean-sheet redesign. The 400 hp LS2 made even the base model a legitimate monster, ripping from 0 to 60 mph in about 4.2 seconds—a figure that put rivals firmly on notice. Crucially, the 2005 Vette brought the franchise into the modern era with standard goodies like keyless access and push-button starting.

However, being a first model year meant a few quirks and growing pains, too. Buyers got stuck with the carry over 4-speed automatic transmission and a somewhat bulky, four-spoke steering wheel. \

Manual owners had the odd requirement of parking in Reverse to prevent parasitic battery drain. Despite these minor first-year flaws, the 2005 C6 is undeniably the genesis of the modern, world-class Corvette we know today.

FAQ: 2005 C6 Corvette

What engine came standard in the 2005 C6 Corvette?

• The 2005 C6 Corvette was powered by the all-new 6.0-liter LS2 V8 engine. This Gen IV small-block V8 was a significant upgrade from the C5’s LS1 (Source: GM Specs).

How much horsepower did the 2005 LS2 engine produce?

• The LS2 engine in the 2005 Corvette was factory-rated at a robust 400 horsepower at 6,000 rpm (Source: GM Specs).

What was the torque rating for the 2005 C6 Corvette?

• The torque output for the 2005 C6 Corvette was 400 lb-ft at 4,400 rpm, perfectly matching the horsepower figure (Source: GM Specs).

How fast was the 2005 C6 from 0 to 60 mph?

• The 2005 C6 Corvette could sprint from 0 to 60 mph in approximately 4.2 seconds when equipped with the standard six-speed manual transmission (Source: Car and Driver).

What was the major visual difference between the C5 and the C6 Corvette?

• The most significant visual change was the C6’s introduction of exposed headlights, marking a return to fixed lighting after the C5’s pop-up design (Source: Corvette Black Book).

What was the wheelbase length of the 2005 C6?

• The wheelbase for the 2005 C6 Corvette measured 105.7 inches (Source: NCM Specs).

Did the 2005 C6 feature a longer or shorter body than the C5?

• The C6 body was actually 5.1 inches shorter in overall length than the C5, making it a more compact sports car (Source: Car and Driver).

What automatic transmission was offered in the 2005 C6?

• The 2005 C6 used the carryover, heavy-duty 4-speed Hydra-Matic 4L65-E automatic transmission (Source: Corvette Black Book).

Did the 2005 C6 offer a six-speed automatic transmission?

• No, the 2005 C6 was the last year before the introduction of the new 6-speed 6L80 automatic transmission in 2006 (Source: Corvette Black Book).

What was a common issue with the fuel system in the early C6 models?

• A frequent issue was the failure of the fuel level sensor (sending unit), which could cause inaccurate or erratic fuel gauge readings (Source: RepairPal).

What optional suspension was first available on the 2005 C6?

• The high-tech Magnetic Selective Ride Control (RPO F55) was an available option, using magnetorheological fluid to adjust damping in real time (Source: GM Options).

Did the 2005 C6 come standard with run-flat tires?

• Yes, all 2005 C6 models came standard with Goodyear Eagle F1 GS-2 Extended Mobility (run-flat) tires (Source: NCM Specs).

What was the size difference in the wheels for the 2005 C6?

• The C6 introduced a staggered wheel setup with 18-inch wheels in the front and 19-inch wheels in the rear (Source: NCM Specs).

Was the 2005 C6 offered in a Z06 model?

• No, the high-performance Z06 model was not offered in 2005; it made its debut for the 2006 model year (Source: Corvette Black Book).

What was the purpose of the Z51 Performance Package in 2005?

• The Z51 package was the top performance option for the base model, adding a stiffer suspension, larger brakes, revised manual gear ratios, and an oil cooler (Source: Car and Driver).

What luxury feature was standard for the first time in the 2005 C6?

• Keyless access and push-button start were standard for the first time, significantly modernizing the Corvette’s entry and ignition process (Source: GM Features).

What was the body construction material for the 2005 C6?

• The 2005 C6 featured a steel frame with hydroformed side rails and composite body panels (Source: NCM Specs).

What colors were available for the 2005 C6 exterior?

• Some of the popular exterior colors included Millennium Yellow, Victory Red, Black, and LeMans Blue Metallic (Source: Edmunds Specs).

What was the maximum engine speed (redline) for the LS2 engine?

• The LS2 engine had a maximum redline of 6,500 rpm (Source: NCM Specs).

Did the 2005 C6 offer an optional navigation system?

• Yes, a DVD-based navigation system was an available option for the 2005 C6 (Source: Edmunds Specs).

How much cargo space did the 2005 C6 Coupe offer?

• The Coupe model offered a generous 22.4 cubic feet of cargo capacity, a major advantage over many sports cars (Source: Edmunds Specs).

What was a common engine-related mechanical issue for the C6 generation?

• A frequently reported issue, particularly on early C6s, is the failure or ‘wobble’ of the harmonic balancer (Source: MotorBiscuit).

What was the base curb weight of the 2005 C6 Coupe?

• The curb weight for the 2005 C6 Coupe was approximately 3,179 pounds, a surprisingly light figure for its class (Source: Edmunds Specs).

Did the 2005 C6 have a traditional mechanical door handle?

• No, the C6 introduced electric door latches and replaced the interior pull-handle with a simple release button (Source: Car and Driver).

What was the recommended fuel type for the 2005 LS2 engine?

• Premium unleaded fuel (93 octane) was the recommended fuel for the LS2 engine (Source: Edmunds Specs).

What does the “C6” designation mean?

• The “C6” designation signifies that it is the sixth generation of the Chevrolet Corvette sports car (Source: Corvette Black Book).

What type of brake setup came on the base 2005 C6?

• The base model featured anti-lock four-wheel power disc brakes with 12.8-inch front rotors (Source: NCM Specs).

How many cubic inches was the 6.0L LS2 engine?

• The 6.0-liter LS2 engine displaced 364 cubic inches (Source: NCM Specs).

What was the compression ratio of the LS2 engine?

• The LS2 engine featured a relatively high 10.9:1 compression ratio (Source: NCM Specs).

What suspension type was used on the C6 Corvette?

• The C6 used a sophisticated short/long arm (SLA) double-wishbone design with a transverse composite leaf spring at all four corners (Source: NCM Specs).

Did the 2005 C6 include a Head-Up Display (HUD)?

• Yes, the Head-Up Display (HUD) system was an available option, capable of displaying speed and a built-in G-meter (Source: GM Features).

Why do some enthusiasts refer to the 2005 C6 as a “one-year-only” car?

• The 2005 model is often called “one-year-only” due to unique components like its steering wheel design, the 4-speed automatic, and a different electrical system compared to later LS2 C6 years (Source: Owner Forums/Reddit).

What safety features were standard on the 2005 Corvette?

• Standard safety features included 4-wheel ABS, electronic brakeforce distribution, traction control, and a tire pressure monitoring system (TPMS) (Source: Edmunds Specs).

What was the city/highway MPG estimate for the manual 2005 C6?

• The estimated fuel economy for the six-speed manual was 16 MPG city and 26 MPG highway (Source: Edmunds Specs).

What was the capacity of the fuel tank in the 2005 C6?

• The 2005 C6 Corvette was equipped with an 18.0-gallon fuel tank (Source: NCM Specs).

How did the C6 handle chassis control compared to the C5?

• The C6’s Active Handling system was noted for being smarter and less intrusive than the C5’s, offering a better driving dynamic (Source: NCM Specs).

What happened to the C5’s signature round taillights on the C6?

• The C6 maintained the classic four-taillight configuration, though the lights were redesigned to be larger and more aggressive than the C5’s perfect circles (Source: Corvette Black Book).

What common problem is linked to a “Service Steering Column Lock” message on the C6?

• An issue with the steering column lock mechanism or its position sensor can trigger this warning message due to a fault in the anti-theft system (Source: RepairPal).

Where was the 2005 C6 manufactured?

• The 2005 C6 Corvette was manufactured at the GM Bowling Green Assembly Plant in Bowling Green, Kentucky (Source: Edmunds Specs).

Is the rear differential in the 2005 C6 weaker than later models?

• Yes, the rear differential in the 2005 C6 is considered weaker than those found in 2006 and later models. This is often cited as a reason for its lower power-handling capacity, especially when modifications are made (Source: Owner Forums/Tech Guides).

Why do manual 2005 C6 Corvettes have to be parked in reverse?

• The manual 2005 C6 must be parked in Reverse to engage the steering column lock mechanism, which is required to prevent a parasitic battery drain issue related to a unique-to-2005 electrical system (Source: Owner Manuals/Reddit).

How difficult is it to replace the C6’s faulty fuel level sensor?

• Replacing the faulty fuel level sensor requires dropping the fuel tank, which is a highly labor-intensive and complex job best handled by a professional (Source: RepairPal).

What made the 2005 steering wheel unpopular with C6 enthusiasts?

• The 2005 C6 carried over a bulkier, four-spoke steering wheel design from the C5 parts bin, which felt less sporty and looked dated compared to the three-spoke wheel introduced in 2006 (Source: Corvette Black Book).

What are the easiest performance gains (first mods) for the LS2 engine?

• The first and easiest performance modifications for the LS2 engine are generally an aftermarket cold air intake and a performance axle-back exhaust system (Source: Tuner Recommendations).

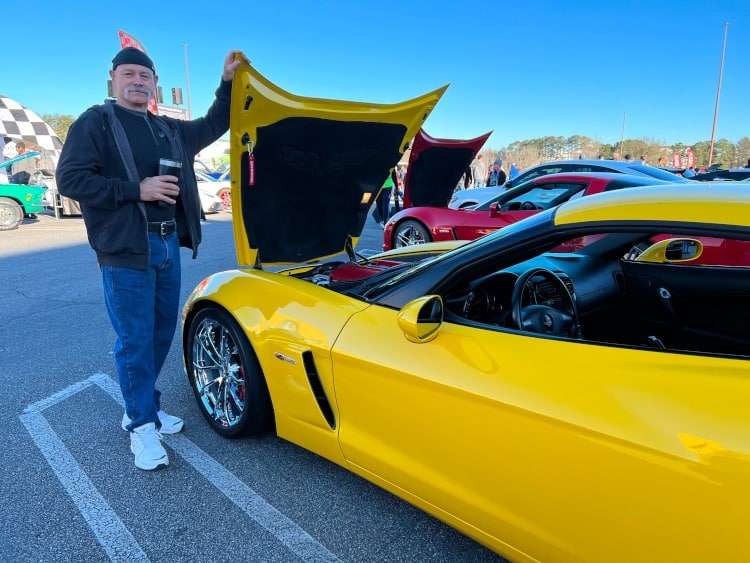

2006 C6 Corvette: The LS7 Awakens

If 2005 was the warm-up, 2006 is when the C6 truly cemented its legendary status, unleashing a level of performance that shook the supercar world.

The biggest headline, without a doubt, was the return of the Z06, which instantly became a certified, fixed-roof killer.

This model was powered by the massive, hand-built 7.0-liter (427 cu. in.) LS7 V8, pumping out a staggering 505 horsepower and 470 lb-ft of torque.

The LS7 was a race-bred masterpiece, featuring a dry-sump oiling system, titanium rods, and a 7,000 rpm redline. With this engine, the Z06 was capable of over 190 mph and could eclipse the quarter-mile in less than 12 seconds.

Crucially, the base Coupe and Convertible were also significantly improved.

They kept the potent 400-horsepower LS2 V8, but finally addressed the major weakness of the 2005 model: the archaic four-speed automatic transmission was retired.

In its place, buyers could option the much-needed six-speed paddle-shift automatic. The interior was refined with a new three-spoke steering wheel and optional XM Satellite Radio.

This blend of evolutionary refinement for the base model and the raw, unadulterated, race-bred performance of the Z06 established the 2006 Corvette as an absolutely unmatched performance bargain on the world stage.

C6 Corvette (2006) Ownership Cost Snapshot: An Economic Advantage

This chart provides verifiable data on the average annual cost of maintaining a 2006 C6 Corvette compared to the high-cost reputation of its European rivals.

FAQ: 2006 C6 Corvette

What was the most significant change for the 2006 model year?

• The most significant change was the reintroduction of the high-performance, fixed-roof Z06 model, which had been absent from the lineup in 2005 (Source: Corvette Black Book).

What was the major transmission upgrade for the 2006 base Corvette?

• The new six-speed paddle-shift automatic transmission became an option, replacing the carryover four-speed automatic from the 2005 model (Source: GM Powertrain).

What engine powered the new 2006 Z06 model?

• The Z06 was powered by the all-new, hand-built 7.0-liter (427 cubic inch) LS7 V8 engine (Source: GM Press Release).

How much horsepower did the 2006 LS7 engine produce?

• The 7.0L LS7 engine was factory-rated at 505 horsepower at 6,200 rpm (Source: GM Press Release).

What was the torque rating for the 2006 LS7 engine?

• The LS7 engine produced 470 lb-ft of torque at 4,800 rpm (Source: GM Specs).

What material was used for the Z06’s frame structure?

• The 2006 Z06 featured an exclusive, lightweight, hydroformed aluminum frame, a significant departure from the base model’s steel frame (Source: GM Press Release).

What unique engine component did the Z06 feature for track use?

• The Z06’s LS7 engine came equipped with a racing-inspired dry-sump oiling system to ensure lubrication during high G-force cornering (Source: GM Press Release).

What lightweight materials were used in the Z06’s engine internals?

• The LS7 engine utilized titanium connecting rods and titanium intake valves to support its high redline capability (Source: GM Specs).

What was the curb weight of the 2006 Z06?

• The 2006 Z06 had an estimated curb weight of 3,130 pounds (Source: GM Press Release).

What was the 0-60 mph time estimate for the 2006 Z06?

• The Z06 was expected to deliver 0-60 mph performance in less than 4 seconds (Source: GM Press Release).

What was the top speed of the 2006 Z06?

• The 2006 Z06 had an estimated top speed of over 190 mph (Source: GM Press Release).

What were the brake caliper specifications on the 2006 Z06?

• The Z06 featured massive 14-inch cross-drilled front rotors with six-piston calipers and 13.4-inch rear rotors with four-piston calipers (Source: GM Press Release).

What was a major exterior addition to all 2006 C6 models?

• Exterior “GM” badges were added to the front quarter panels of the Coupe and Convertible models (Source: Corvette Black Book).

What was the performance rating of the standard 6.0L LS2 V8 in 2006?

• The standard 6.0L LS2 V8 was carried over, maintaining its output of 400 horsepower and 400 lb-ft of torque (Source: GM Powertrain).

What steering wheel change was made for the 2006 C6?

• A new, smaller-diameter three-spoke steering wheel replaced the 2005 model’s four-spoke design (Source: Corvette Black Book).

Was the LS7 engine paired with an automatic transmission in the Z06?

• No, the high-performance LS7 engine in the Z06 came exclusively with a manual transmission (Source: GM Specs).

What color changes were introduced for the 2006 model year?

• New exterior colors included Velocity Yellow Tintcoat and Monterey Red Metallic Tintcoat (Source: Corvette Black Book).

Where were the LS7 engines for the Z06 hand-built?

• The LS7 engines were hand-built at GM’s Performance Build Center in Wixom, Michigan (Source: GM Press Release).

What was the common complaint about the LS7 engine’s reliability?

• A serious, well-documented issue was the premature wear of the factory cylinder head valve guides, which could lead to catastrophic engine failure (Source: Owner Forums/MotorBiscuit).

What is the typical cost range for repairing the Z06’s LS7 cylinder heads?

• The combined cost for a proper head repair and reinstallation typically falls in the range of $3,500 to $6,500 (Source: LS7 Repair Guide).

What interior color option was new for 2006?

• The Titanium interior (a gray color) was a new interior color option offered for 2006 (Source: Corvette Black Book).

What were the Z06’s unique tire and wheel sizes?

• The Z06 featured 18-inch front wheels with 275/35ZR18 tires and wider 19-inch rear wheels with massive 325/30ZR19 tires (Source: GM Press Release).

What audio upgrade was standard or available in the 2006 model?

• The premium Bose audio system now included XM Satellite Radio (Source: Corvette Black Book).

How many 2006 Z06 models were built?

• A total of 6,272 Z06 Corvettes were built for the 2006 model year (Source: Production Stats).

What was a common issue with the C6’s automatic transmission shifter?

• Some owners reported the automatic shifter getting stuck in “Park”, often due to the failure of a small, inexpensive plastic bushing on the shift cable (Source: Repair Guide).

What was the Z06’s quarter-mile time estimate?

• The 2006 Z06 was expected to eclipse the quarter-mile in less than 12 seconds (Source: GM Press Release).

What was a common complaint from critics about the 2006 Corvette’s interior?

• Critics consistently complained that the interior material quality, particularly the plastics, felt subpar compared to expensive European rivals (Source: Car and Driver Review).

What body style was the 2006 Z06 exclusively offered in?

• The Z06 was only available as a fixed-roof coupe, a design choice made to maximize body rigidity and aerodynamics (Source: GM Press Release).

What was the engine oil capacity of the Z06’s dry-sump system?

• The Z06’s dry-sump system utilized an 8-quart reservoir (Source: GM Specs).

How did the Z06’s rear spoiler differ from the base model?

• The Z06 featured a taller rear spoiler incorporated with the Center High Mount Stop Lamp (CHMSL) to provide aerodynamic downforce (Source: GM Press Release).

What was the Z06’s compression ratio?

• The 7.0L LS7 engine had an 11.0:1 compression ratio (Source: GM Specs).

What was the purpose of the Z06’s bi-modal mufflers?

• The bi-modal mufflers used vacuum-actuated outlet valves to control exhaust noise, keeping it quiet at low speeds but opening up for maximum power (Source: GM Press Release).

What part of the Z06 chassis was made from magnesium?

• A new magnesium cradle was used as the attachment point for the engine and some front suspension components to save weight and improve balance (Source: GM Press Release).

What common mechanical issue did the C6 differential have?

• The differential on the C6 was prone to developing leaks, usually from seals and O-rings, becoming more likely as the car ages (Source: Repair Guide).

Did the 2006 base model offer the Z51 Performance Package?

• Yes, the Z51 Performance Package (RPO Z51) remained an option for the base models, adding heavy-duty suspension, larger brakes, and performance-tuned gear ratios (Source: Production Stats).

What engine had its redline increased to 7,000 rpm?

• The all-new 7.0L LS7 engine in the Z06 had a high 7,000 rpm fuel shut-off limit (Source: GM Specs).

Is there a preventative fix for the LS7 valve guide wear issue?

• Yes, the preventative fix involves removing the LS7 cylinder heads and replacing the factory powdered-metal valve guides with more durable manganese-bronze guides, a process often referred to as “reworking the heads” (Source: LS7 Repair Guide).

What kind of engine oil does the 2006 Z06 dry-sump system require?

• The LS7 engine with the dry-sump system requires specific synthetic oil, typically a 5W−30 weight (such as Mobil 1), and requires about 8 quarts due to the external reservoir (Source: Owner Manuals/GM Specs).

How effective are the 6-speed automatic’s paddle shifters?

• The 6-speed automatic’s paddle shifters were often criticized for their slow response time, as they are not true dual-clutch paddles, but they still offer better manual control than the outgoing 4-speed auto (Source: Car and Driver Review).

Does the 2006 C6 come with a standard anti-skip feature for CDs?

• The 2006 C6 offered an enhanced Bose system with an in-dash 6-CD changer and XM Satellite Radio compatibility, but early models sometimes struggled to read burned or MP3 discs reliably (Source: CNET Review).

What noise indicates the C6 needs a new torque tube coupler?

• A noticeable rattling, clunking, or shuddering noise from beneath the console, particularly during shifting or acceleration, indicates a potential failure of the rubber coupler (Guibo) inside the torque tube (Source: Repair Guide).

Is the 2006 Z06 a reliable platform for a daily driver?

• Yes, the 2006 Z06 is widely considered a surprisingly practical and reliable daily driver, offering ample cargo space, good highway MPG, and relatively civilized road manners, provided the critical LS7 head issue has been addressed (Source: Apex Auto Review).

Common High-Cost Repair Averages (The Corvette “Flaws”)

This list details the estimated cost range for the high-anxiety repairs often associated with early C6 ownership, providing essential budget benchmarks for buyers.

*Replacing the harmonic balancer is a high-priority repair that typically ranges from $1,100 to $1,900 in 2026, a cost driven by a labor-intensive 6–10 hour process requiring the removal of the steering rack and subframe alignment.

While a standard GM replacement unit costs roughly $150–$250, technical experts strongly recommend upgrading to an SFI-rated aftermarket balancer (such as ATI or Powerbond) to permanently resolve the factory rubber-bonding failure.

A professional-grade repair must also account for “hidden” essentials, including fresh power steering fluid, a new front main seal, and a mandatory new torque-to-yield crank bolt.

For maximum LS7 reliability, many owners also opt to “pin the crank” during this service to prevent the balancer from spinning on the snout.

Failure to address a wobbling balancer can lead to catastrophic damage to the aluminum timing cover, steering rack, and crankshaft, making this a critical investment for any owner.

2007 C6 Corvette: Special Editions and Refinements

It’s always a pleasure to revisit a pivotal year like this.

After the bombshell that was the 2006 Z06, the 2007 C6 wasn’t a year for big, scary revolutions; it was a year for absolute, focused refinement.

Chevy basically decided to take the existing platform—the final year for the reliable 400HP LS2 in the base car — and the mighty 505HP LS7 in the Z06—and fine-tune every single detail that mattered to us long-term enthusiasts.

This wasn’t marketing fluff; this was the brand showing they listened to every piece of owner feedback.

The big focus, naturally, was exclusivity. 2007 gave us two instant legends that collectors snap up immediately.

First, the jaw-dropping Ron Fellows ALMS GT1 Z06 Edition. Only 399 of these Arctic White titans were made, featuring Ron’s actual signature etched onto the inner console—a feature that confirms their pedigree and makes them highly sought after today.

You also saw the debut of the stunning Indy 500 Pace Car Replica, limited to just 500 convertibles, all finished in the unforgettable Atomic Orange Metallic paint.

Beyond the rare paint codes, the base C6 became a more polished daily driver. We finally saw essential features like steering wheel audio controls become standard and buyers opting for the high-tech Magnetic Ride Control (F55) got cross-drilled brakes included for the first time.

This model truly represents the final, ultimate evolution of the LS2 platform before the massive 2008 overhaul. If you value pedigree, subtle perfection, and low-production rarity, 2007 is a powerhouse year you simply can’t ignore.

FAQ: 2007 C6 Corvette

What were the two limited-edition models introduced for the 2007 model year?

• The two highly collectible editions were the Ron Fellows ALMS GT1 Z06 and the Indianapolis 500 Pace Car Replica Convertible (Source: Corvette Black Book).

How many units of the Ron Fellows ALMS GT1 Z06 were produced globally?

• Only 399 examples of the Ron Fellows Z06 were produced worldwide, cementing its status as an instant collectible (Source: Car and Driver).

What distinguished the Ron Fellows Z06 exterior design?

• The Ron Fellows Z06 was the first Z06 to wear Arctic White paint, featuring red hash-style fender stripes and a unique full-width rear spoiler (Source: GM Press Release).

What special feature did the Ron Fellows Z06 contain on the interior console?

• Each Ron Fellows Z06 features the driver’s signature and the car’s production number etched onto the inner center console lid (Source: Bring a Trailer/Owner Forums).

What was the production run limit for the 2007 Indianapolis 500 Pace Car Replica?

• Chevrolet limited the production of the 2007 Indy Pace Car Replica Convertibles to just 500 units (Source: Indy Pace Car Data).

What unique exterior color was featured on the 2007 Indy Pace Car Replica?

• The Indy Pace Car Replica was finished exclusively in the new Atomic Orange Metallic Tintcoat (Source: Indypacecars.com).

What performance package was included with the 2007 Indy Pace Car Replica Convertible?

• All 2007 Indy Pace Car Replicas came standard with the Z51 Performance Package (Source: Indy Pace Car Data).

What standard feature was added to the Bose premium audio system for 2007?

Steering wheel-mounted audio controls were included as standard equipment on the right spoke of the steering wheel for all Bose-equipped models (Source: Southern Car Parts).

What visual change was made to the Head-Up Display (HUD) option?

• The 2007 model introduced a new lighted switch for the F55 Magnetic Selective Ride Control system (Source: Corvette Black Book).

What happened to the optional cross-drilled brake rotors in 2007?

• Cross-drilled brake rotors, previously part of Z51, became automatically included with the F55 Magnetic Selective Ride Control option (Source: Southern Car Parts).

What new seat type became available for the Coupe and Convertible models?

• Available two-tone modified leather seats were introduced, featuring the crossed flag logo embroidered into the headrests (Source: Southern Car Parts).

What cosmetic change was made to the Z06 logo on the headrests?

• The Z06 featured a solid-filled “Z06” logo embroidery on the headrest, replacing the previous model’s outlined logo (Source: CorvSport).

How was the 2007 Z06 improved for better daily usability?

• An enhanced acoustic package with extra sound insulation was added to the Z06’s optional 2LZ equipment group (Source: Southern Car Parts).

What new exterior color replaced Daytona Sunset Orange Metallic?

• Atomic Orange Metallic Tintcoat debuted for 2007, replacing the previous Daytona Sunset Orange Metallic (Source: Corvette Black Book).

What minor convenience upgrade was made to the interior cabin space?

• The 2007 model year featured a slightly larger glove compartment space (Source: Southern Car Parts).

What luxury option became included in the Convertible’s 3LT equipment group?

• The power-operated convertible top was made standard within the high-level 3LT option package (Source: Southern Car Parts).

What standard features were integrated into the base model’s side mirrors?

• Auto-dimming, power, and heated side mirrors became standard equipment on all models (Source: NCM Specs).

What feature allows buyers to order non-standard interior/exterior color pairings?

• The specific option code RPO D30 was introduced, allowing customers to order non-recommended color combinations for a premium price (Source: CorvSport).

Did the 2007 Z06 feature any mechanical changes to the LS7 engine internals?

• No, the LS7 engine’s displacement, horsepower (505 HP), torque, and titanium components were carried over unchanged from the 2006 model year (Source: GM Specs).

Was the 2007 C6 the last model year with the 400HP LS2 engine?

• Yes, 2007 was the final year for the 6.0-liter LS2 engine before it was replaced by the 6.2-liter LS3 engine in 2008 (Source: Corvette Black Book).

LS7 Technical Vision: The Owner’s Identification & Verification Handbook

1. The Block: Casting Number 12598723

• Verification: This is the definitive casting number for the production Gen IV 7.0L aluminum block used in the C6 Z06 (2006–2013) and the Camaro Z/28 (2014–2015).
• Location: The number is cast into the driver’s side rear flange of the block, positioned just above the area where the transmission bellhousing bolts up.
• Technical Detail: This casting is unique for its pressed-in iron cylinder liners, which are 5.850 inches long—significantly longer than standard Gen IV liners—to support the LS7’s 4.000-inch stroke and massive 4.125-inch bore.
• Identification Note: While this architecture is specific to the LS7, it can be confused with other Gen IV blocks. To be certain, look for “7.0” cast directly into the block metal, a hallmark of this engine family.

2. The Cylinder Heads: Casting Number 12578449

• Verification: Casting number 12578449 is the correct identifier for the factory CNC-ported cylinder heads used on the LS7.
• Technical Finish: These are the only factory GM heads of the era configured with 2.20-inch titanium intake valves and 1.61-inch sodium-filled exhaust valves to enable the engine’s legendary 7,000 RPM redline.
• Misleading Potential: A “bare” version of this casting exists for aftermarket builds; however, only the factory-assembled 12578449 units include the lightweight titanium and sodium-filled hardware required for high-RPM stability.
• A Note on Reliability: While the casting number verifies the installation is correct, serious owners in 2026 often investigate the internal valve guides to ensure long-term health.

3. Decoding the “Birth Date” (Date Codes)

• Location: The block casting date is typically found on the passenger side rear of the block, near the starter or bellhousing flange.
• The Format: The code usually consists of a letter for the month (A–L), two digits for the day, and a single-digit year (e.g., “K195” indicates November 19, 2005).
• Critical Verification: For NCRS-level accuracy, the sequence must be chronological: the block pour date must precede the engine assembly date (stamped on the front pad), and both must precede the vehicle build date found on your trim tag.

4. The Flint Signature (“F” Stamp)

• The Stamp: Locate the engine ID pad on the front of the block. A factory Corvette Z06 LS7 built between 2006 and 2013 will bear a stamp starting with “F,” designating its hand-assembly at the Performance Build Center then located in Wixom/Flint, Michigan.
• Clarification: In 2014, LS7 production primarily transitioned to the Bowling Green Performance Build Center in Kentucky. The Flint “F” remains the gold standard for original C6 Z06 verification.
• Misleading Statement Risk: Do not confuse the “F” engine stamp with the “F” in the 10th digit of the VIN, which designates a 2015 model year vehicle. The “F” on the engine pad is strictly a plant identifier.

Technical Spotlight: 2005–2007 Ownership & Verification Guide

To satisfy the technical standards of our most discerning readers, we have compiled these four critical areas of verification and maintenance for the early C6 era.

1. The LS7 “Wiggle Test” (Reliability)

To address the significant search interest regarding LS7 reliability, owners must understand how to technically verify the health of their cylinder heads.

• The Diagnostic: The “Wiggle Test” is a proven method used to measure valve stem-to-guide clearance without removing the heads from the engine.
• The Threshold: Using a dial indicator, a lateral movement exceeding .0037 inches indicates that the factory powdered-metal guides are worn.
• The Corrective Finish: For 2026 longevity, we recommend a professional refresh using durable manganese-bronze guides to prevent the catastrophic failure often discussed in enthusiast forums.

2. The LS2 to LS3 Performance Bridge (Configuration)

Many buyers cross-shopping the final years of the LS2 (2007) and the debut of the LS3 (2008) want to know if the jump in “Configuration” is worth the investment.

3. Harmonic Balancer Diagnostics (Common Flaw)

A persistent search query for the LS2 and LS7 involves identifying a failing harmonic balancer.

• The Visual Standard: With the engine idling, perform a visual inspection of the main crankshaft pulley.
• The Warning Sign: Any noticeable lateral “wobble” or a belt that chirps intermittently suggests the rubber bonding between the balancer’s inner and outer rings has failed.
• Installation Priority: This is a high-priority repair ($1,100 –$1,900) as a full separation can cause significant damage to the steering rack and front engine cover.

4. Paint Code Evolution (Date Codes & Rarity)

For collectors tracking “Date Code” accuracy and production rarity, understanding these paint transitions is essential for verifying a car’s originality.

• Orange Evolution: Daytona Sunset Orange (RPO 71U) was a one-year-only launch favorite for 2005 (with some early 2006 overlap) before being replaced in 2007 by the brighter Atomic Orange (RPO 83U).
• Yellow Transition: The iconic Millennium Yellow (RPO 79U) was retired after 2005, making way for Velocity Yellow (RPO 45U), which served as the performance color for the remainder of the C6 generation.

LS7 Suffix Code Identification (2006–2013)

The VIN 8th Digit for the Z06 is always “E,” designating the high-performance 7.0L V8. To verify the original configuration, look for the three-character suffix code on the engine pad.

LS7 Crankshaft Identification

The LS7 utilizes a forged steel crankshaft with a 4.000-inch stroke and a 58X reluctor wheel. For 2026, it is critical to distinguish between the early and late production units.

The 2026 LS7 Buyer’s Redline Checklist

• Block Check: Verify casting 12598723 and look for the “7.0” mark.
• Head Maintenance: Confirm if the 12578449 heads have had a professional valve guide refresh, a critical step for 2026 longevity.
• Crankshaft Match: Match the part number (12611649 or 12641692) to the production year and material type.
• Date Sequence: Ensure the block pour date chronologically precedes the assembly date on the front pad.
• Assembly Origin: Look for the Flint “F” on the engine pad for C6 Z06 authenticity.

Technical Detail: The C6 Differential Evolution (2005 vs. 2006)

Identifying the specific differential configuration is critical for any C6 owner planning performance modifications. The 2005 model year featured a “one-year-only” design that is widely recognized as the “Achilles’ heel” of early C6 drivetrains.

Key Verification Nuances

The 2005 Flaw: The 2005 case lacks external reinforcement webbing. Under high-torque launches, the aluminum case can flex, causing the internal gears to misalign. This often results in the gears “punching through” the passenger-side wall of the housing.

The 2006 Fix: To support the 505 HP LS7, GM completely redesigned the differential for 2006. The new case features structural ribbing and a 5-bolt mounting pattern where it meets the transmission.

Internal Carrier Configuration (The “Spider Gear” Distinction): While all 2006+ Corvettes benefitted from the new reinforced, 5-bolt ribbed case, the internal components differed significantly depending on the model’s performance level.

• The Z06/ZR1 Standard: These high-output models (LS7/LS9) utilize a heavy-duty 4-pinion carrier. This design features four “spider gears” to distribute massive torque more evenly, making it the gold standard for drag racing and track use.

• The Base Model Reality: The standard 2006+ LS2 and LS3 Corvettes (Base and Convertible) typically retained a 2-pinion carrier. While this unit is perfectly adequate for street use, it lacks the ultimate shear strength of the Z06’s 4-pinion setup.

• The Identification Trap: Do not assume that every “ribbed” 5-bolt differential is a 4-pinion unit. Unless the differential was pulled from a Z06, ZR1, or a manual-transmission Grand Sport, it likely contains the standard 2-pinion internals.

The “NCRS Standard” Check: For a correct “Date Code” restoration, locate the casting date on the housing near the fill plug. To be considered authentic, this date should fall within six months prior to the vehicle’s final assembly date.

The LS-Powered Legacy: Why the 2005-2007 C6 Remains the Ultimate Performance Bargain

Looking back over two decades, I can tell you that the 2005 through 2007 C6 model years weren’t just a debut—they were the absolute pivot point that redefined the Corvette brand forever.

We watched this platform ditch the nostalgia, embrace global sophistication, and, with the LS7 in 2006, legitimately shock the entire supercar establishment.

Now, you hold the definitive blueprint for owning these icons.

You understand why 2005 manual cars park in reverse, you know the exact specs that make the Z06 a verifiable assassin, and you know the critical fix needed for the legendary LS7 cylinder heads.

Crucially, you know which models are the rarities, including the 2007 Ron Fellows and Indy Pace Cars, turning you into an instant expert. That knowledge is power; it transforms potential anxiety into pure confidence.

Don’t let common flaws scare you away from one of the greatest performance bargains ever built.

The C6 spirit is all about world-class power and everyday usability, offering a driving experience that still punches far above its weight class today.

So, take the specs, grab the keys, and go enjoy the ride!

Looking for a Deep Dive?

We recommend, Corvette Generations: A Deep Dive into an American Icon for those wanting to know more about Corvette design philosophy, engineering breakthroughs, and cultural impact that shaped each generation of the Corvette. From fiberglass-bodied beginnings to its modern mid-engine architecture.
